产品描述：

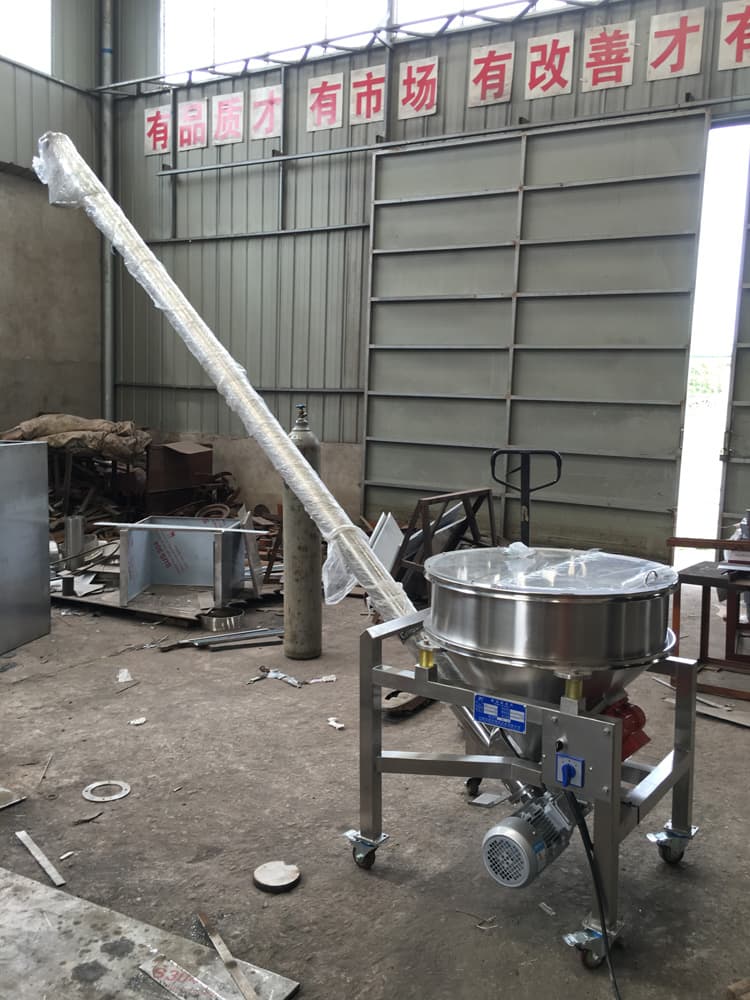

该机是利用电机带动螺旋回转，推动物料以实现输送的机械。

它能水平、倾斜或垂直输送，是输送各种粉粒料的理想设备。

The machine uses motor to drive spiral rotation and to promote material to realize conveying.

It can be transported horizontally , obliquely or vertically . It is an ideal equipment for transporting various kinds of powder.



产品应用：

可与许多粉状或颗粒状产品的包装相匹配。

适用于食品、医药、化工、粉体、味精等行业。

Competible with many packing equipments for powder or granule products.

Applicale with food pharmaceutical and chemical industry etc powder, monosodium glutamate etc.



产品特点：

1.Humanization design, easy dismantle, separate product contact parts for cleaning without tools, no uncovered corners, particulary suitable for food packing industry.

It takes one person one minute to complete the entir dismantlement process. It saves time and energy, safe and efficient.

2.Hopper with arch breaker device to help you to solve bridge issue.

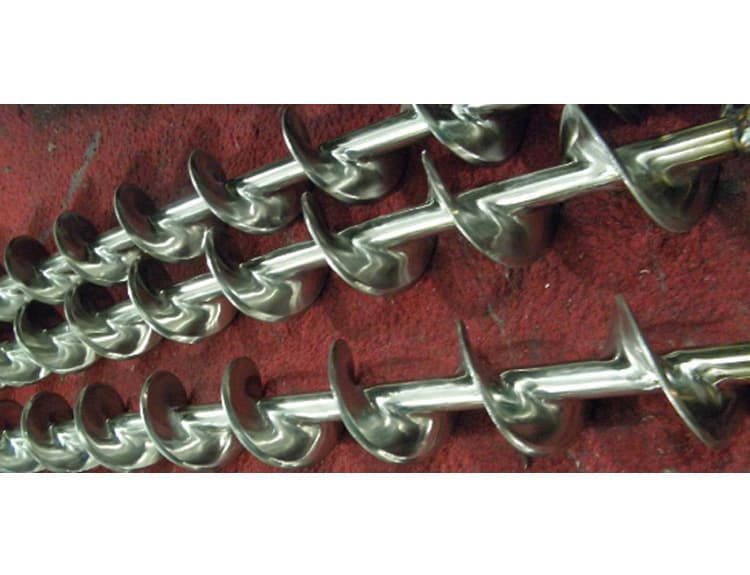

3. Upgeade component: Polished screw, Semi-opening tube.

4. This model offers both standard and customized machine of your choice.

输送仰角β=450，螺旋转速n=134r/min（可加装变频调速）Conveying elevationβ=450, screw speed n=134r/min( variable frequency speed can be installed)
型号	STLS-10	STLS-12	STLS-14	STLS-16	STLS-20	STLS-25
筒内径(mm)	100	120	140	160	200	250
电机功率(kw)	0.75	1.1	1.5	2.2	4	5.5
*大装料重量(t/h)	0.5-2	0.8-2.5	1-4	1.5-6	2-8	3-10
